One of these things is not like the others

class: center, middle, inverse, title-slide

# One of these things is not like the others
## Visual Statistics and Testing in Statistical Graphics
### 2020-02-11

---

.center[
<img src="lineups/fileac6d6d9106c7-single.svg" width = "80%" alt = "Really obvious lineup"/>
]
.bottom[Lineup from Loy et al (2017)]
---
## Lineup Logic
.pull-left[
1. A statistic is a function of the sample data, so a plot is a __(visual) statistic__

2. Generate __null plots__ by randomizing the data or sampling from the null distribution

3. Construct a __visual hypothesis test__ consisting of `$m$` plots, with `$m_0$` null plots and `$m-m_0$` target plots

4. User testing: `$K$` evaluations of the lineup with panel selection counts `$c_1, ..., c_m$` where `$\displaystyle K = \sum_{i=1}^m c_i$`

].pull-right[
.center[
<img src="lineups/fileac6d6d9106c7-single.svg" width = "100%" alt = "Really obvious lineup"/>
]]

.bottom[Lineup from Loy et al (2017)]

---
## Visual P-values

- `$K$` evaluations of the lineup by different individuals
- Panel selection counts `$c_i, i = 1, ..., m$` where `$\sum_i c_i = K$`

--
***
Option 1: All plots are equally likely to be selected
`$$\vec{c} \sim\text{Multinomial}(1/20, K)$$`

--
***
Option 2: Some null plots may be visually interesting by chance

We can model the panel selection counts `$$\vec{c} \sim\text{Multinomial}(\vec{\theta}, K)$$`

with panel selection probabilities `$\theta_i$` distributed as a symmetric Dirichlet distribution `$$\vec\theta \sim \text{Dirichlet}(\alpha)$$`

---
## Visual P-values

Option 1 | Option 2
:------: | :------:
All plots are equally likely to be selected | Some null plots may be visually interesting by chance
`$$\vec{c} \sim\text{Multinomial}(1/20, K)$$` | `$$\vec{c} \sim\text{Multinomial}(\vec{\theta}, K)$$` `$$\vec\theta \sim \text{Dirichlet}(\alpha)$$`

Either method allows us to calculate a "visual p-value" analogous to a simulation-based hypothesis test

---

.center[
<img src="lineups/polar_line2_1_0_3.png" width="80%" alt = "Lineup (plot 13 is the target)" style="margin-left:0;margin-right:10px;"/>
]
.bottom[Lineup from Hofmann et al (2012)]

---

.center[
<img src="lineups/euc_line2_1_0_13.png" width="80%" alt = "Lineup (plot 13 is the target)" style="margin-left:0;margin-right:10px;"/>
]
.bottom[Lineup from Hofmann et al (2012)]

---
## Visual Power

Lineups allow us to determine the (visual) power of different plot types

.bottom[Lineups from Hofmann et al (2012)]
--

Whichever design results in the target being identified more often is more visually powerful.

---

.center[
<img src="lineups/set-48-k-5-sdline-0.45-sdgroup-0.25-TREND.png" width="80%" alt = "Lineup with trendline (plot 12 and 5 are the targets)" style="margin-left:0;margin-right:10px;"/>
]
.bottom[Lineup from Vanderplas & Hofmann (2017)]

---

.center[
<img src="lineups/dog-cat_7.jpg" width="80%" alt = "Lineup of dogs with a hidden cat in plot 7" style="margin-left:0;margin-right:10px;"/>
]

---

.center[
<img src="lineups/set-48-k-5-sdline-0.45-sdgroup-0.25-COLOR.png" width="80%" alt = "Lineup with colored points and 95% bounding ellipses (plot 12 and 5 are the targets)" style="margin-left:0;margin-right:10px;"/>
]
.bottom[Lineup from Vanderplas & Hofmann (2017)]

---
## Two-Target Lineups

.pull-left[

- Original lineup design modeled on classical hypothesis testing: <br/>under `$H_0$`, `$$P(\text{target plot selected}) = 0.05$$`

- Two-target lineups use simulated data from two different data-generating models

- Null plots are a mixture between the two models

].pull-right[
<img src="lineups/287be2de779da8641715f91d3b5c4277.svg"/>
]

.bottom[Lineup from Vanderplas & Hofmann (2017)]

---
## The Giant Two-Target Lineup Factorial Study

Each lineup contains:

- 1 trend model dataset - "trend target"
- 18 mixture model datasets for null plots
- 1 cluster model dataset - "cluster target"

Goal: Which of the two target plots are most likely to be selected?

- influence of aesthetic choices
- influence of summary objects
???

We can also construct lineups which compare two extremes. Here, the null plots are mixtures of the two base models. The goal of these lineups is to determine which model is more visually salient (and, with different aesthetics, how that answer changes)

---
## The Giant Two-Target Lineup Factorial Study

Data generating parameters:
- `$\sigma_T$` - variability around the trend line
- `$\sigma_C$` - variability around cluster centers
- `$k$` - number of clusters ( `$k\in\{3, 5\}$` )
- `$N$` - number of points (fixed at `$15\cdot k$` )

Levels of data generating parameters chosen to be easy, medium, and hard to discriminate, based on numerical assessments - correlation, Gini inequality

---
## The Giant Two-Target Lineup Factorial Study

### Big picture:
How do Gestalt principles of perception apply to statistical graphics, and which effects are stronger?

![Gestalt Laws of Perception](image/Gestalt.svg)

.bottom[Figure modified from [Valessio CC BY  https://creativecommons.org/licenses/by/4.0](https://commons.wikimedia.org/wiki/File:Gestalt.svg)]

---
## The Giant Two-Target Lineup Factorial Study

- 10 different combinations of aesthetics

- Each combination emphasizes clusters (color, shape, ellipse) or linear trends (trend line, prediction interval)

---
## The Giant Two-Target Lineup Factorial Study

In the end...

3 levels of variability for cluster model
3 levels of variability for trend model
2 levels of # clusters (3, 5)

= 18 parameter combinations

x 3 lineup datasets per parameter combination **= 54 datasets**
***

x 10 aesthetic combinations per lineup dataset **= 540 different plots**

***

1201 participants x 10 evaluations each
`$=$` 12010 participant evaluations of 540 different plots

`$\approx$` 22 evaluations per plot

---
## The Giant Two-Target Lineup Factorial Study

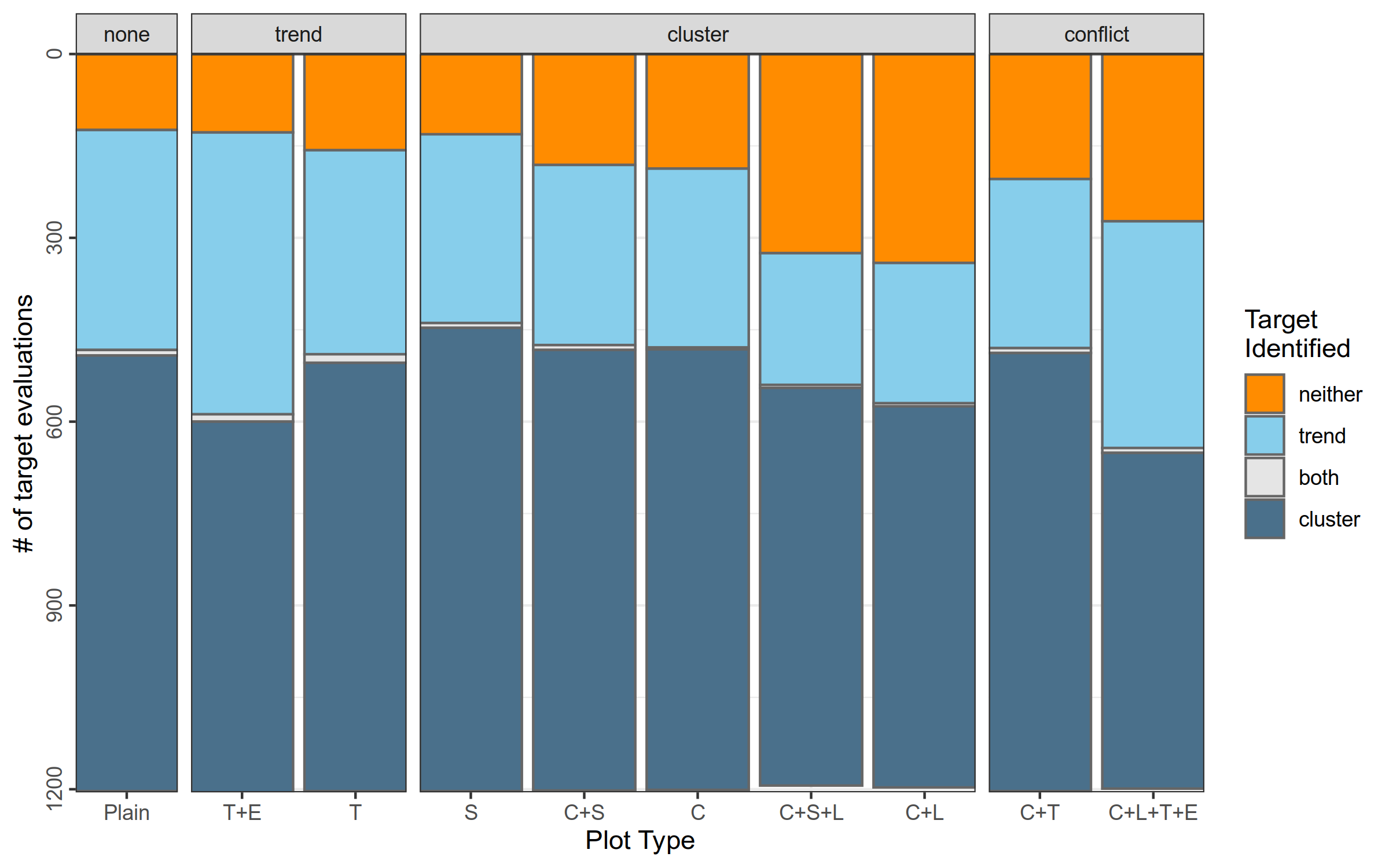

![](image/accuracy-1.png)

---
## The Giant Two-Target Lineup Factorial Study

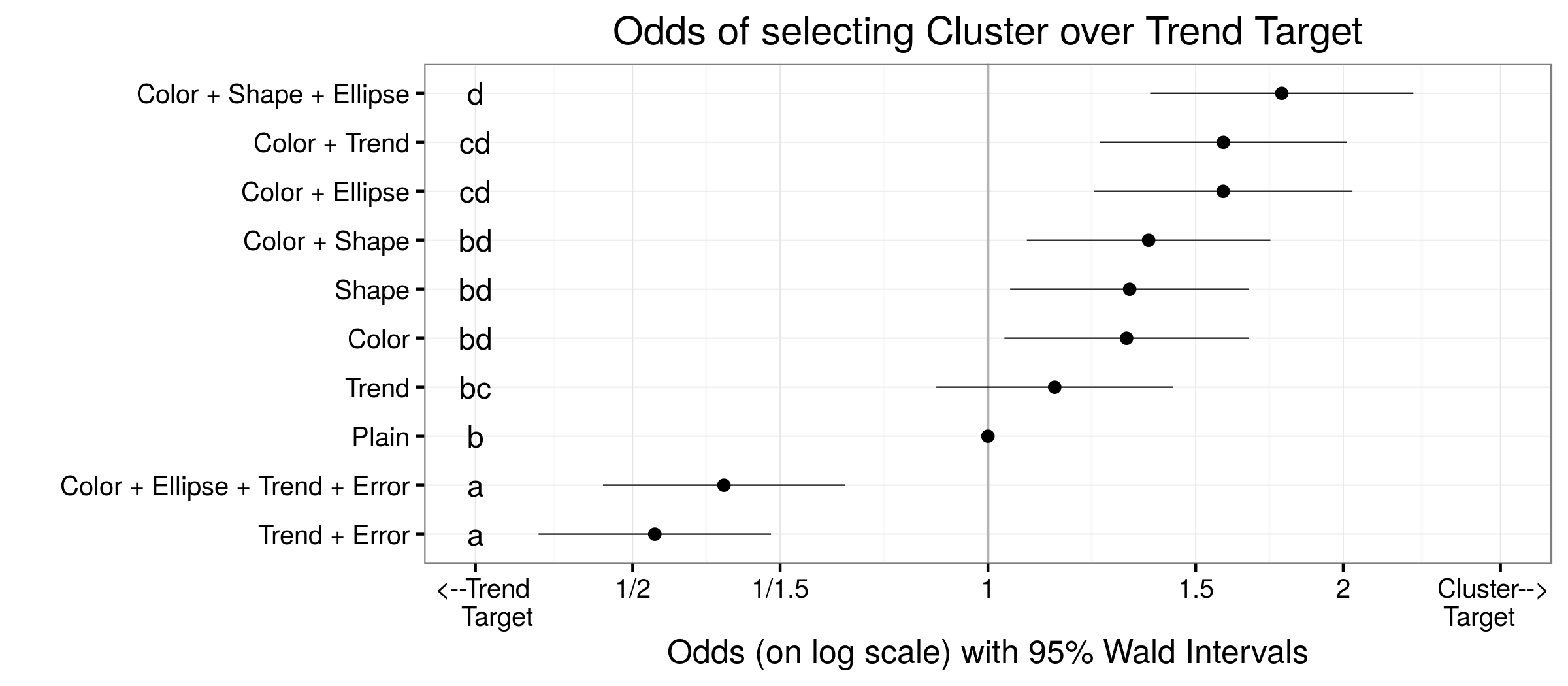

Modeling `$P(\text{Cluster selected} | \text{Cluster or Trend target selected})$`,

![](image/cluster-vs-line-1.png)

Fitting models is one thing, but we might get some more clarity from asking participants why they selected their answer.

???

- Error bands increase the likelihood of selecting the trend target
- Color, Shape, Ellipses increase the likelihood of selecting the cluster target

- Color beats trend
- Error bands beat color + ellipse

---
## The Giant Two-Target Lineup Factorial Study

But how do participants justify their choices?

When shown a **plain** plot... Participants who chose .underline[.hidden[some plot]] said:

Cluster | Null | Trend
------- | ---- | -------
<img src="image/wordles-plain-1.png" width = "auto"/> | <img src="image/wordles-plain-2.png" width = "auto"/> | <img src="image/wordles-plain-3.png" width = "auto"/>

---
## The Giant Two-Target Lineup Factorial Study

But how do participants justify their choices?

When shown a **color** plot... Participants who chose .underline[.hidden[some plot]] said:

Cluster | Null | Trend
------- | ---- | -------
<img src="image/wordles-color-1.png" width = "auto"/> | <img src="image/wordles-color-2.png" width = "auto"/> | <img src="image/wordles-color-3.png" width = "auto"/>

---
## The Giant Two-Target Lineup Factorial Study

But how do participants justify their choices?

When shown a **line** plot... Participants who chose .underline[.hidden[some plot]] said:

Cluster | Null | Trend
------- | ---- | -------
<img src="image/wordles-line-1.png" width = "auto"/> | <img src="image/wordles-line-2.png" width = "auto"/> | <img src="image/wordles-line-3.png" width = "auto"/>

---
## Conclusion

- Lineups are a powerful tool for examining the strength of a visual signal in data

- Lineups can be used to compare the visual power of different plot designs

- Two-target lineups can be used to explore the effect of different aesthetics and statistical layers

- Visual exploration is equivalent to simultaneously running many different numerical tests for single features
    - Formalizing this in an experimental framework leverages the power of the visual system

---
