Hidden Multiple Comparisons Increase Forensic Error Rates

Susan Vanderplas

2025-08-04

Outline

• Motivation

• CSI: Wire Cuts

• What is the probability of a false positive?

• Conclusions

This research is joint work with Heike Hofmann (Nebraska-Lincoln) and Alicia Carriquiry (Iowa State).

Slides Link

Motivation

Source

Source

Motivation

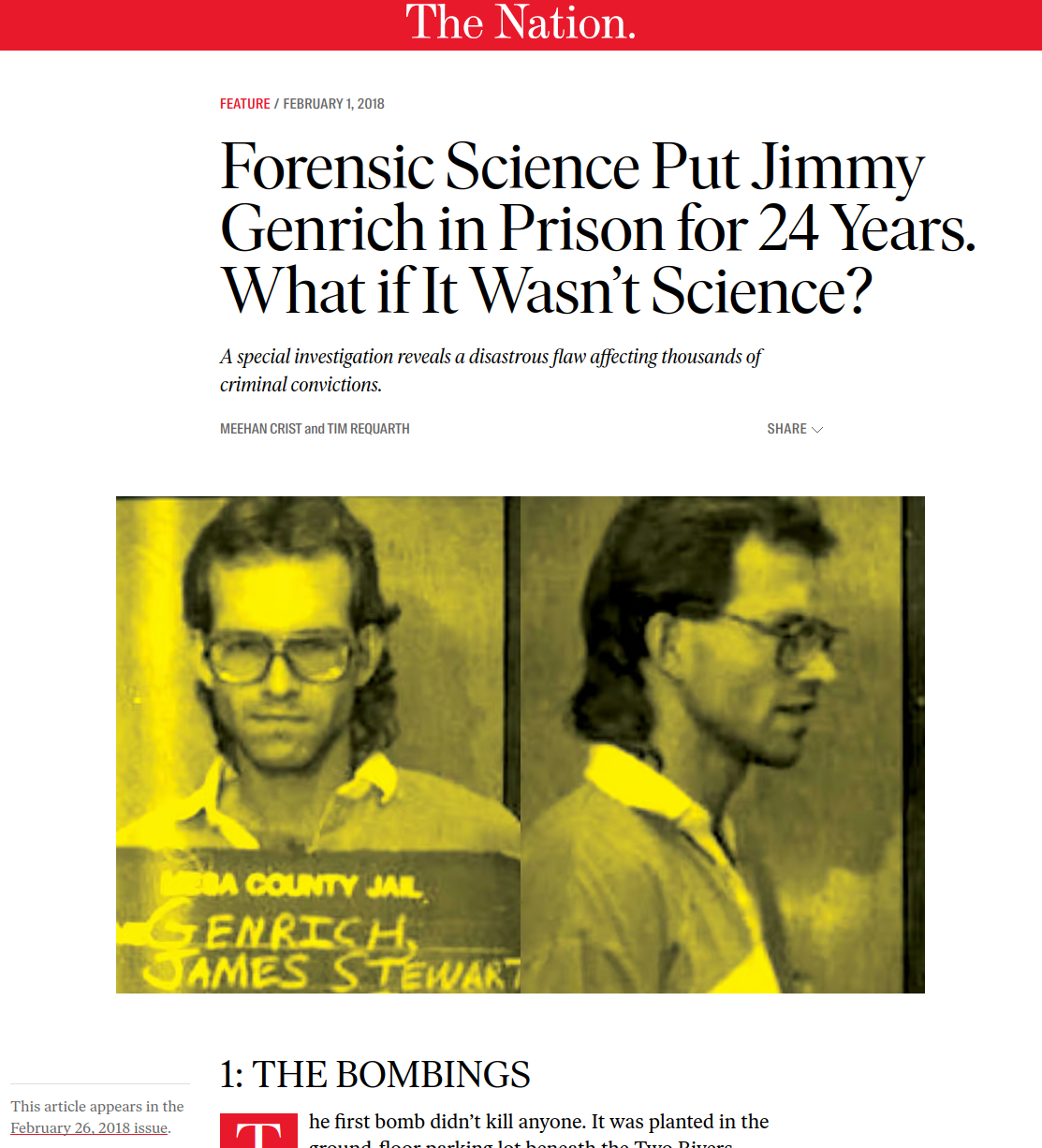

At trial, O’Neil testified that tools like the wire cutters found in Genrich’s residence were the only tools that could have been used to make the pipe bombs. “Agent O’Neil opined that the three of Mr. Genrich’s tools were the only tools in the world that could have made certain marks found on pieces from the four bombs,” Judge Gurley wrote in Monday’s opinion.

O’Neil was asked specifically at trial what he meant by the phrase “to the exclusion of any other tool.” “That the individual jaw, the location within that jaw on that particular side, was identified as having cut the wire in question to a degree of certainty to exclude any other tool,” he said, according to court transcripts referenced in Gurley’s decision. O’Neil said this was true of needle-nosed pliers used on the bomb, slip-joint pliers, as well as the wire cutter.

Source (emphasis added)

CSI: Wire Cuts

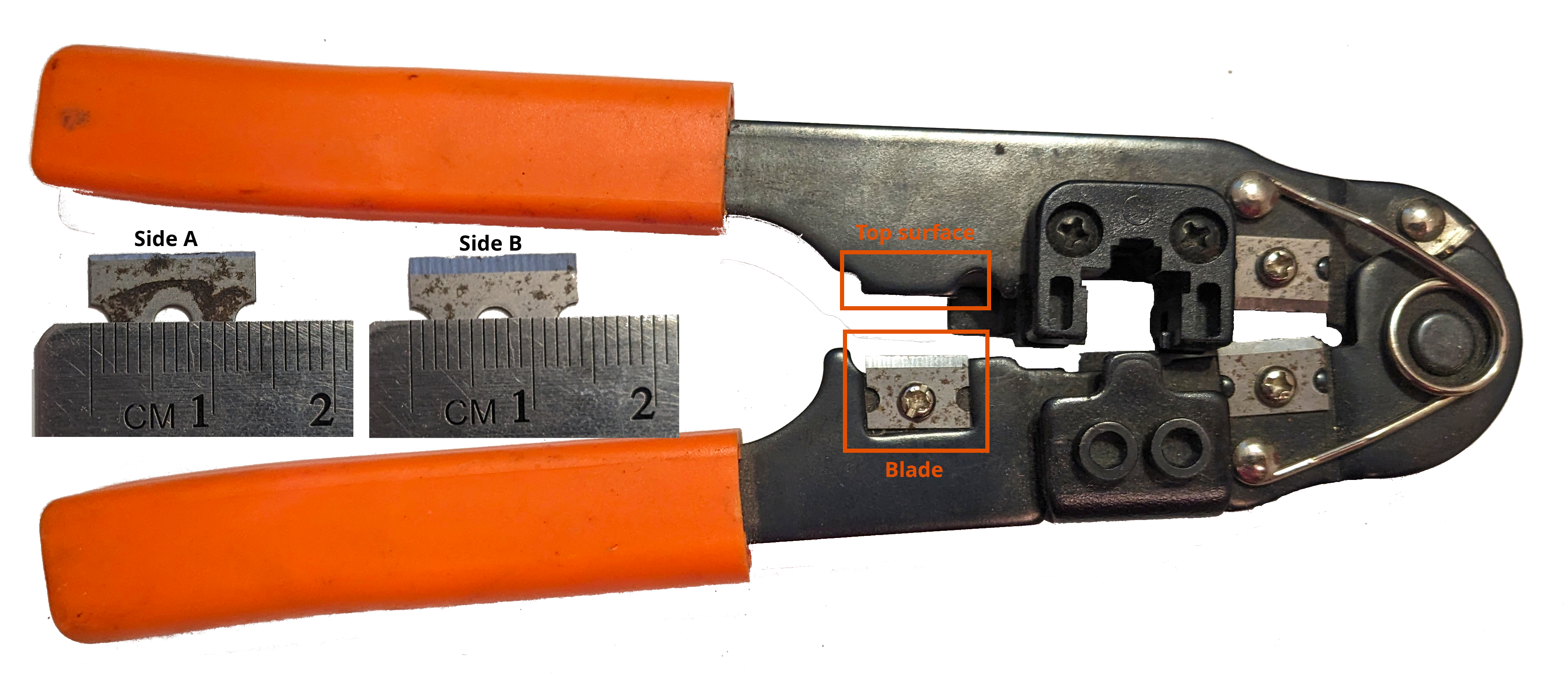

CAT5 crimper with wire cutter

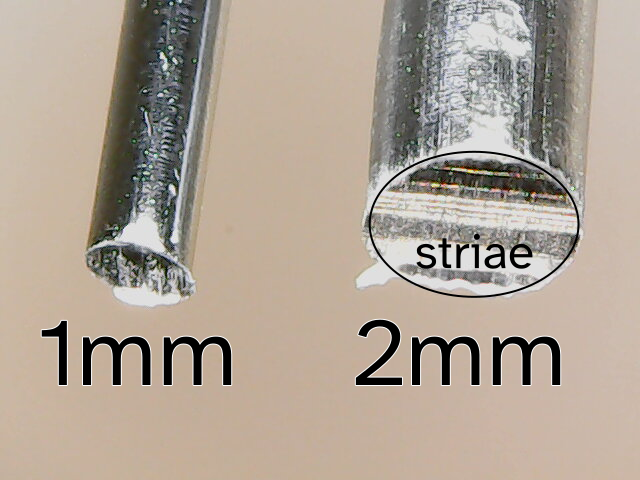

Cut wires

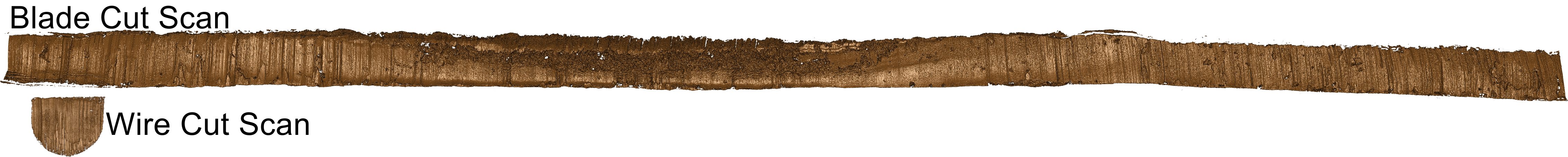

Digital scan of blade cut and wire cut

Examiner Method

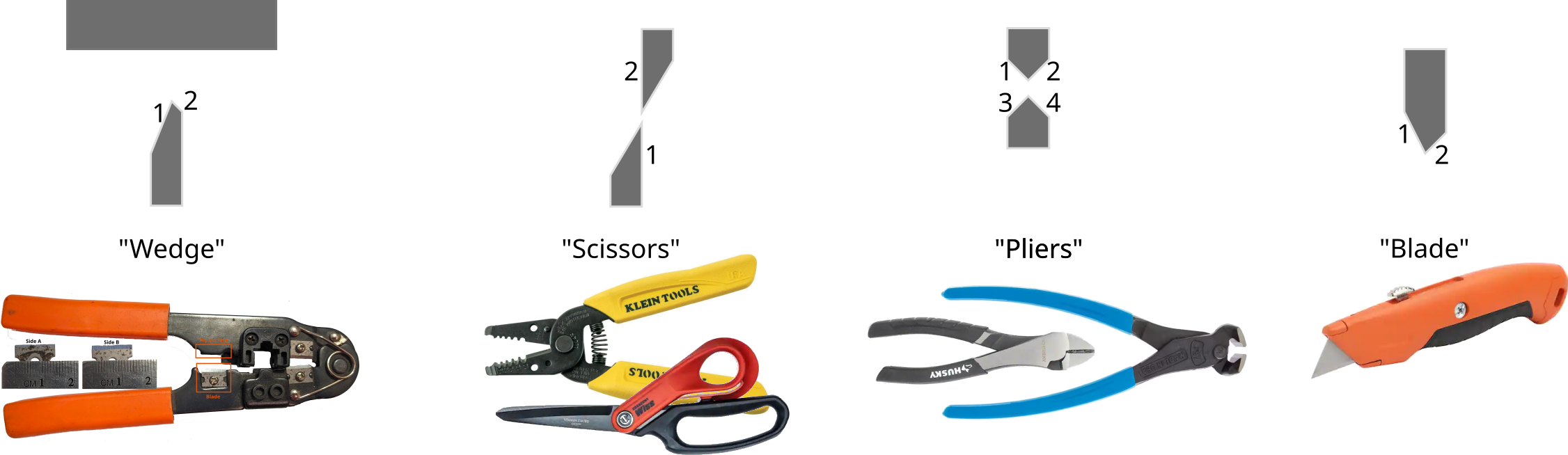

• Between 2 and 4 cutting surfaces for each tool, \(s \in \{2, 4\}\)

• Wires have 1-2 striated surfaces, \(w \in \{1, 2\}\)

Visual Examination

• Compare sequential wire cuts or blade cuts to recovered wire

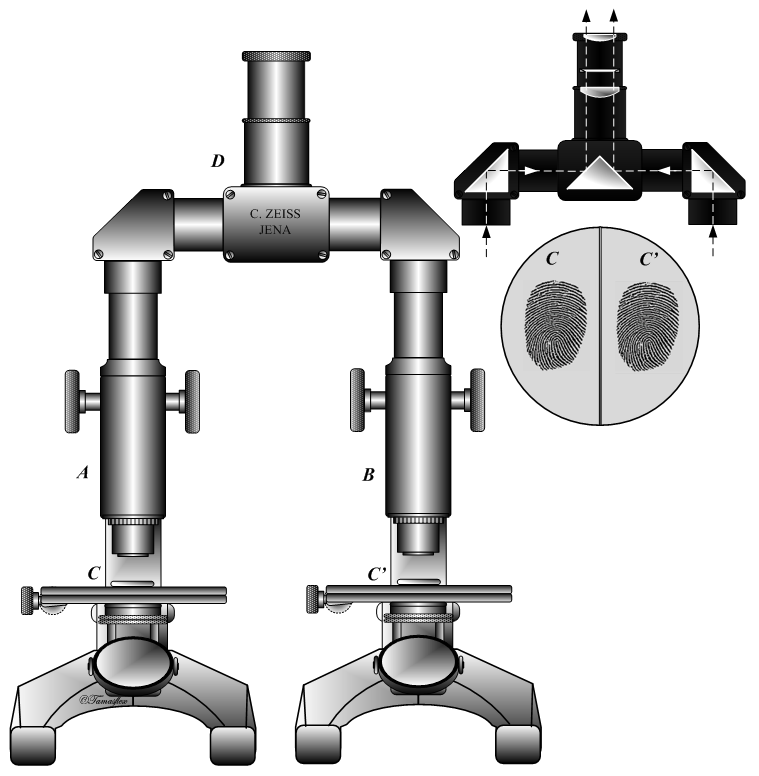

• Examiner uses a comparison microscope to see both cuts, aligns striae manually

• At least \(N_{ij} = b_i/d_j\) comparisons for each blade surface \(i\) and cut wire surface \(j\)

• Manual alignment means we can only estimate the minimum comparisons

Adjacent comparisons are non-overlapping \(\Rightarrow\) “independent”¹

1. There are peak-valley dependence structures in profile data, but given tool/material/manufacturing, we would expect statistical independence between adjacent comparisons

Algorithmic Method

Scans -> Cross Section -> Signature (remove gross topology)

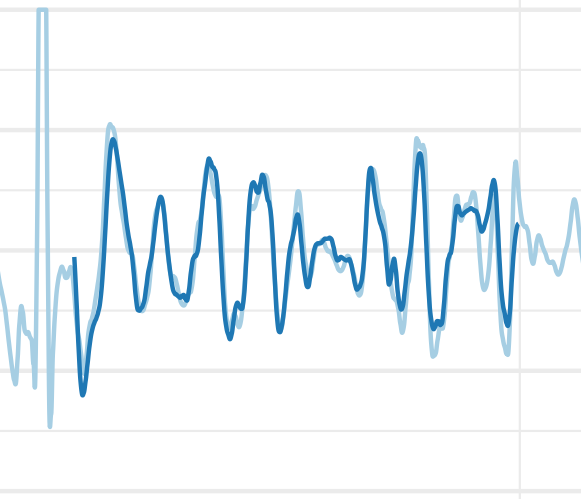

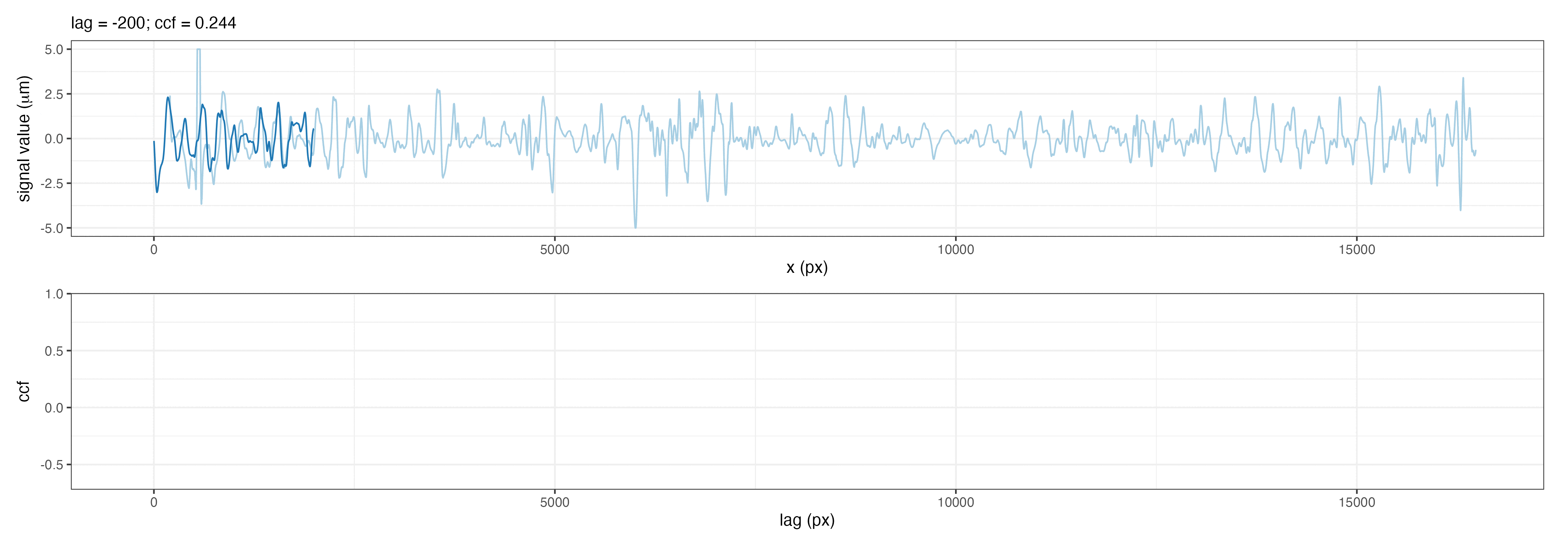

Cross-correlation is used to align signature from blade cut surface to signature from wire cut surface.
Image credit: Heike Hofmann

Number of Comparisons

In our example,

Minimum

• blade size is \(b=15 mm\)

• \(s = 2\) cutting surfaces/blade

• wire size is \(d = 2 mm\)

• \(w = 1\) wire surfaces



• 7.5 comparisons per side

• 15 comparisons total

Image by Tamasflex. Wikimedia. CC-A-SA.

Maximum

• blade size: \(b = 15000\) \(\mu\!\) m

• \(s = 2\) cutting surfaces/blade

• wire size: \(d = 2000\) \(\mu\!\) m

• \(w = 1\) wire surfaces

• resolution: \(r=0.645\) \(\mu\!\) m/px

• 20,156 comparisons per side

• 40,312 comparisons total

This assumes there’s a single wire and a single possible tool.

Hidden Comparisons

• We accept that there’s a false positive error rate with any method

• Alignment produces hidden multiple comparisons

• The standard wire comparison process produces many more comparisons

  • multiple angles

  • multiple substrate materials (sometimes)

  • multiple potential tools

• Wires from crime scenes may be fragmented or damaged

Personal Motivation

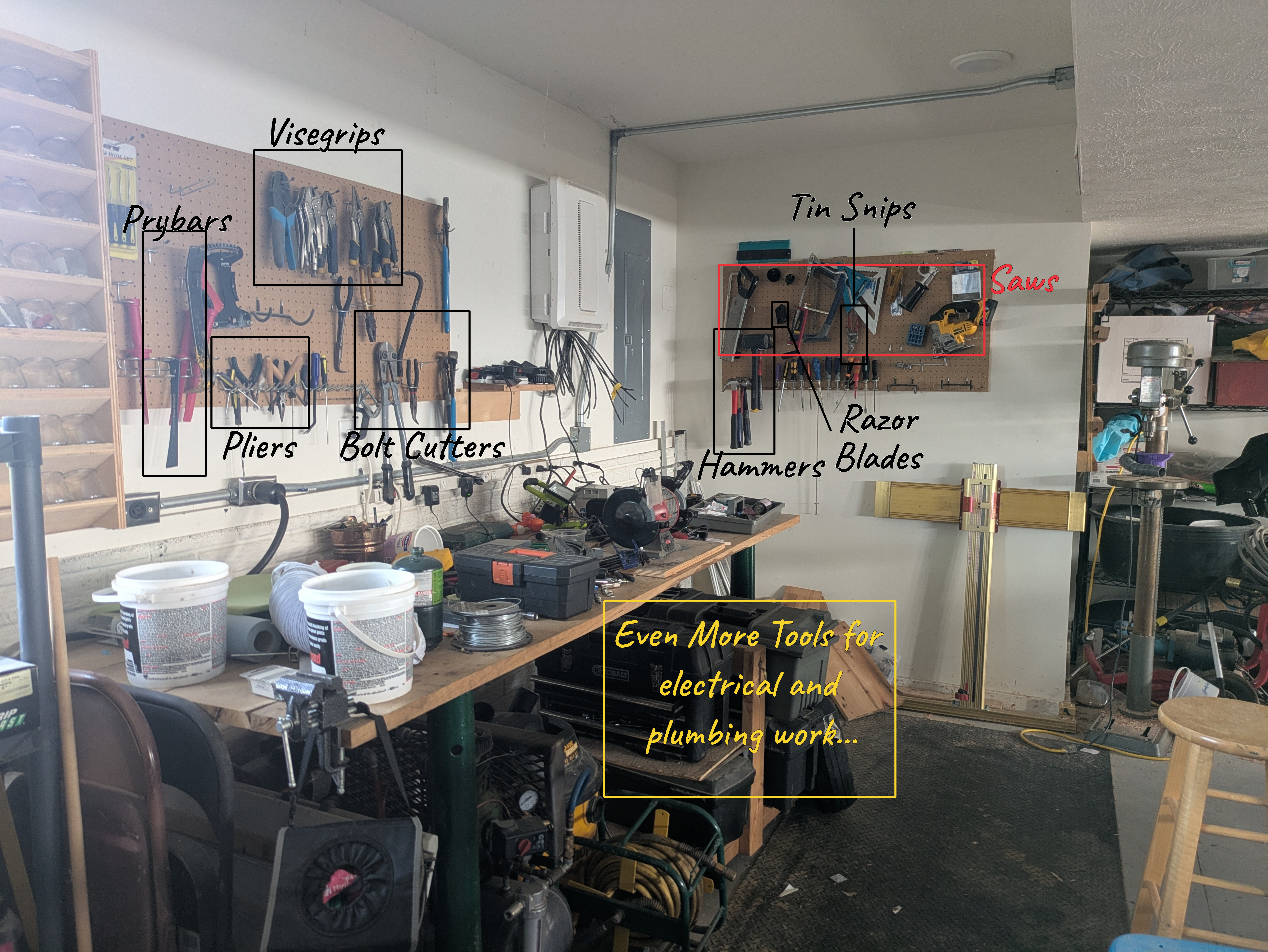

My house has \(\approx\) 982 cm of (easily accessible) blade surface which might be used to cut wires. Not shown: the craft room, the kitchen, and the garden shed. My dad’s shop has \(\approx\) 2243 cm of blade surface. No one in either house is a professional craftsperson.

So How Bad Is the Problem?

For error rate \(e\) and \(n\) comparisons

\[P(\text{no false positive errors}) = 1 - \left(1 - e\right)^n\]

So How Bad Is the Problem?

• Estimated false positive error rate for striated comparisons from bullets and firing pins: 0.45 - 7.24%.

  • Not enough error rate studies on wires
  • bullets have additional structure to facilitate alignment

Pooled estimate: 2%

• probably an underestimate for wires (shorter striae sequences, more dependence on angle)

So How Bad Is the Problem?

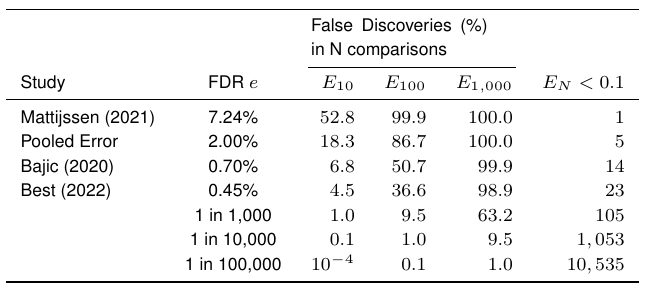

If we want to ensure the family-wise false positive rate is under 10%…

Conclusions

• Wire cut forensics are problematic

but… this problem shows up in database searches, too!

• IAFIS (Integrated Automated Fingerprint ID System)
• NIBIN (Ballistics Database)
• NDIS (National DNA ID System) and CODIS (Combined DNA ID System)
• PDQ (Paint Data Query)
• FISH (Forensic ID System for Handwriting)

Conclusions

• Automatic intelligence algorithms are not a good substitute for investigative work

• Example: Oregon

  • 3 firearms examiners for the state
  • Most firearms evidence run through NIBIN first
  • Promising leads forwarded to examiners for manual assessment

This is a setup that could generate false-positives by design!

Conclusions

• Examiners should report and Defense Attorneys should require

  • overall length or area of surfaces generated during the examination process (\(b\))
  • total consecutive length/area of recovered evidence (\(d\))

• Studies relating length/area of comparison surface to error rates are essential!

  • No available black-box error rate for wire cuts
  • Studies should be difficult, like casework!

• Any database search used at any stage of the process should be disclosed along with

  • \(N\) items in the database used for comparison
  • Number of results returned as ‘similar’ (top 20? top 5?)
  • Protocols for confirmatory assessment

Caveats

• It is important to distinguish between matching algorithms and intelligence algorithms

• Matching algorithms compare the similarity of two pieces of evidence
  • no database searches are involved
  • algorithm may have a set of training data (different)

• Defense Attorneys should be familiar with protocols for evidence assessment in the jurisdiction
  • What algorithms were used
  • What databases were searched
  • Were examiners provided with automatic database search results at the start?

Questions?

PNAS Paper Link

This work was partially funded by the Center for Statistics and Applications in Forensic Evidence (CSAFE) through Cooperative Agreements 70NANB15H176 and 70NANB20H019 between NIST and Iowa State University, which includes activities carried out at Carnegie Mellon University, Duke University, University of California Irvine, University of Virginia, West Virginia University, University of Pennsylvania, Swarthmore College and University of Nebraska, Lincoln.
